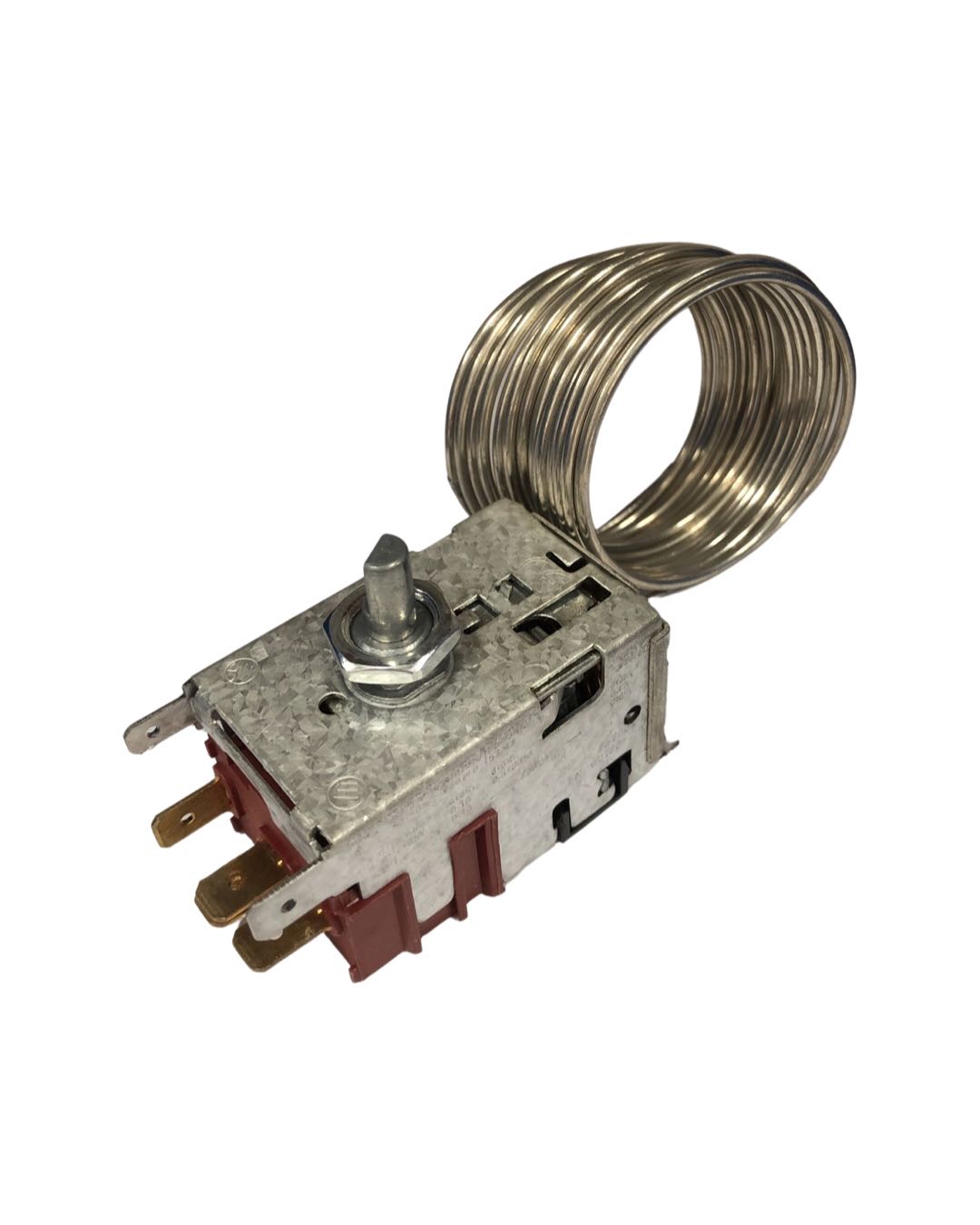

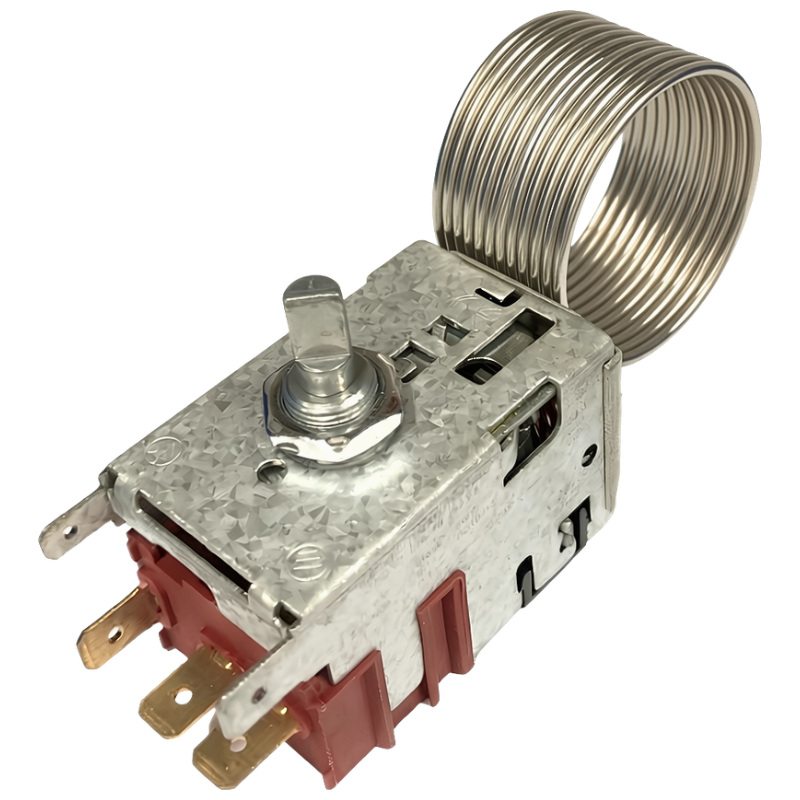

Danfoss Compatible Freezer Thermostat 800mm Dual Range (077B0025)
This thermostat is built to the operating profile of the Danfoss 077B0025 B0 control, used in low‑temperature freezer applications without an alarm circuit. It provides stable cycling and reliable compressor control, helping restore correct temperature regulation in systems suffering from over‑freezing, temperature drift or short‑cycling.
The bulb‑and‑capillary sensing element delivers fast evaporator response, ensuring consistent cabinet performance in commercial and domestic freezers. Designed as a direct functional replacement for systems originally fitted with the Danfoss 077B0025.
Features:
- Compatible replacement for Danfoss 077B0025
- Freezer thermostat without alarm circuit
- Dual temperature ranges –15 °C to –32 °C and –23 °C to –32 °C
- B0 low‑temperature control profile
- 4‑pin terminal layout (matches original Danfoss configuration)
- Capillary sensing bulb for precise evaporator feedback
- Stable cycling for reliable compressor operation
- 800mm capillary length
