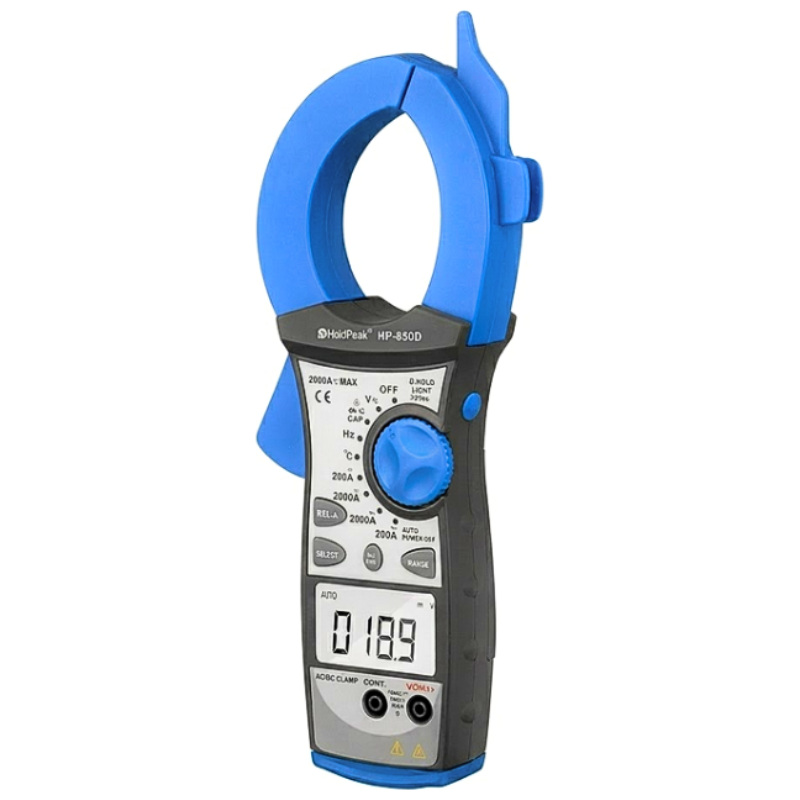

HoldPeak HP-850D 2000A Clamp Meter with Frequency Temperature Capacitance Duty Cycle Test

The HP-850D model is a versatile measuring device that offers a wide range of capabilities. It is equipped with various measuring features such as capacitance, voltage, resistance, and current. The capacitance measurement range includes options for 40nF, 400nF, 4uF, 40uF, and 100uF. For voltage measurements, it supports ranges of 400mV, 4V, 40V, 400V, 750V, and 1000V. The operating temperature range spans from -20°C to 1000°C, making it suitable for a variety of environments. In terms of resistance, it provides measurements for 400, 4k, 40k, 400k, 4M, and 400M. The current range extends from 0-100A and 1000-2000A. The display mode is digital-only, and the device features a 3999 display. Additionally, it offers frequency measurements at 10Hz, 100Hz, 1000Hz, 10KHz, and 100KHz. The jaw caliber is 55mm, enabling easy measurements on different objects. Other notable features include duty cycle measurement from 0.1% to 99.9%, diode testing, hFF testing, relative value measurement, MAX/MIN functionality, and a continuity buzzer. Overall, the HP-850D is a comprehensive measuring instrument suitable for a wide range of applications.
