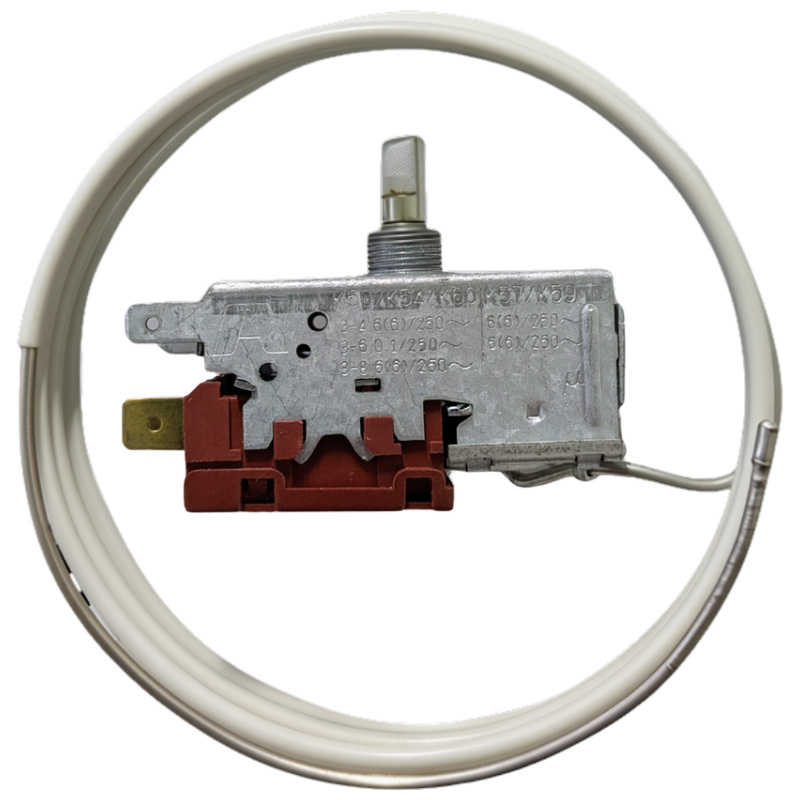

Refrigerator Thermostat – Suits Fisher & Paykel (883707P / 813491P / K59-A6821-001)
This two‑cabinet refrigerator thermostat suits many Fisher & Paykel top‑mount fridge‑freezer models using the K59‑A6821‑001 calibration profile. It provides stable cold cut‑out, cold cut‑in and warm cut‑in performance for cyclic‑defrost systems where the thermostat controls the refrigerator evaporator and indirectly regulates freezer temperature via airflow. The sealed 1100mm capillary tube ensures reliable sensing and straightforward installation. Supplied as a replacement for Fisher & Paykel mechanical cold‑control assemblies.
Features:
- Replacement thermostat for Fisher & Paykel two‑cabinet refrigerators
- Cold cut‑out approximately –25.5°C
- Cold cut‑in approximately –11.7°C
- Warm cut‑in approximately +5.7°C
- 1100mm sealed, crimped capillary tube
- Suitable for cyclic‑defrost refrigerator systems
- Cross‑references: 883707P, 813491P, K59‑A6821‑001, RFP091, R091209, DR091, K59‑Q6821‑000
Suits Models:
C270, C370, C520T, N510T, N500B, N369B, C369B, C395B, N411T, C390T, N325T, C335T, N375T, C380B, N395B, N400H, N405T, C410B, C415H, C420T
